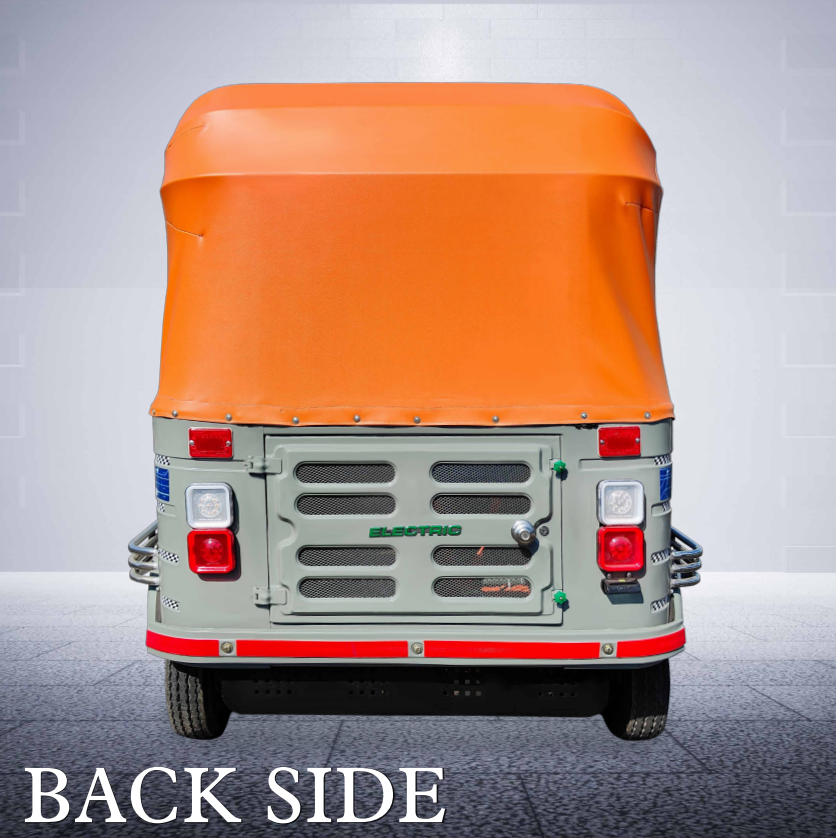

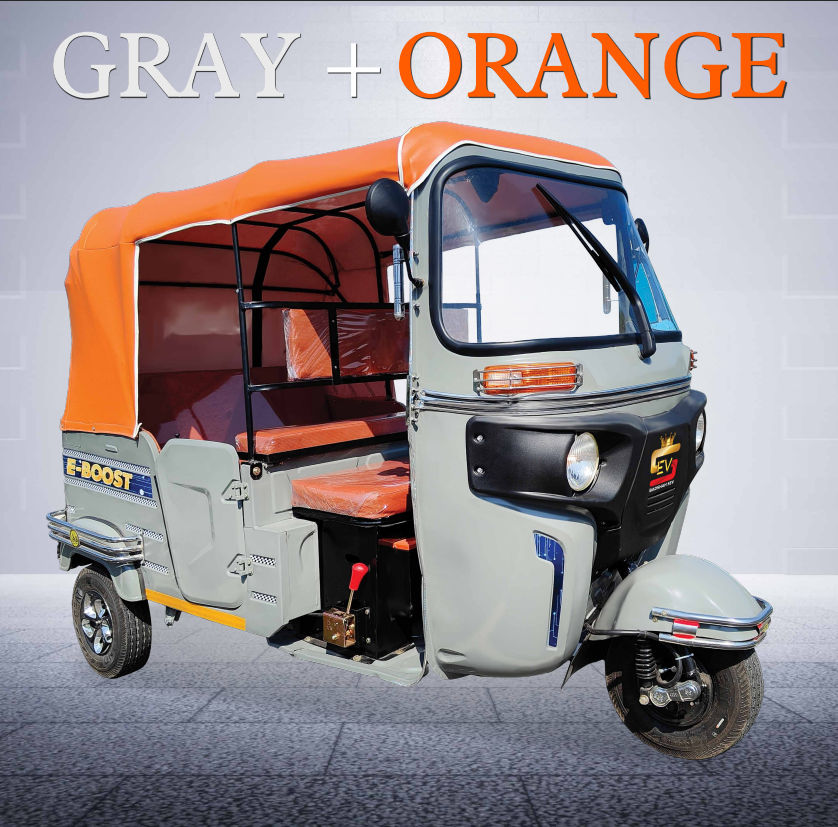

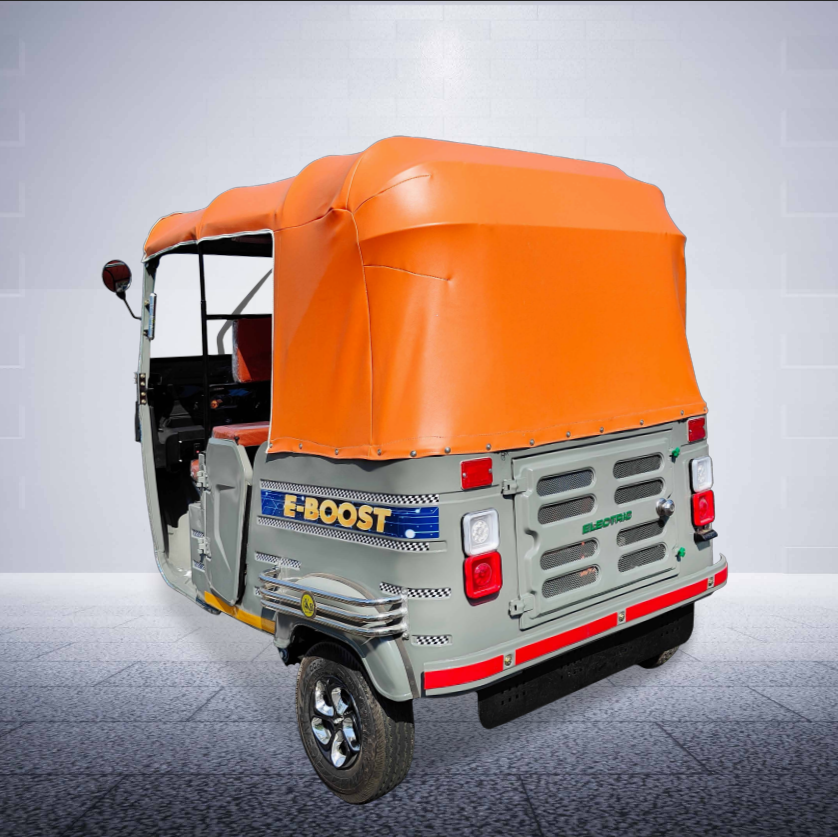

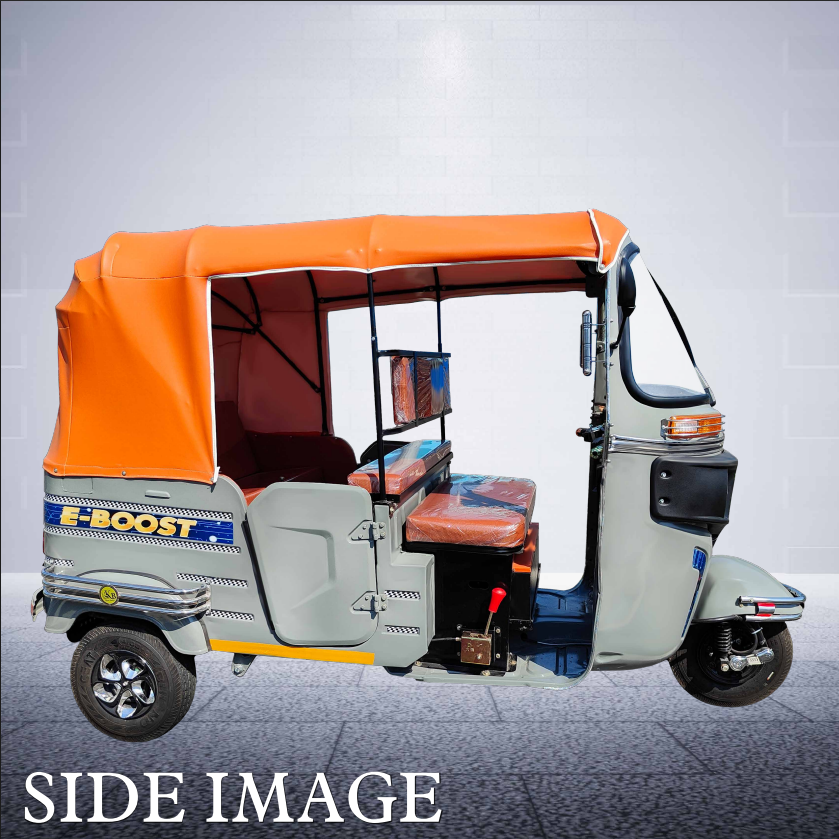

MODEL NAME: L5 SEV SPECIFICATION

Motor Type: PMSM

Motor Power: 3000 Watt (Datai)

Controller operational volt: 48/60/72 V

Top Speed: 55 km/h

Gradeability: 7-12% (Can climb slopes)

Battery type: Lithium- Ion (Modern Model)

Battery Capacity: 190 AH (11.4 KW) Voltage 60V

Charging Time: 5 Hours (Easy Charging: With an on-board charger, you can charge your vehicle anytime anywhere, 80% charge in under 4 hours)

Charger: 2.2 KW Rating Power 69.4V/30A

Range per Charge: 180 KM

Passenger Model: 3+ Driver

Vehicle kerb weight: 370 KG

Gross Vehicle Weight: 690 KG

Ground Clearance: 130 mm

Tyres: 3 Wheels (4×12 typical)

Vehicle dimensions: L 2625, W 1370, H 1710 (All in MM)

Chassis: Monochrome, Heavy – Duty Steel/ Tubular Chassis Strong Body Crafted to withstand the toughest conditions, offering unrivalled durability, Suspension, Independent suspension, coil spring with shock absorber

Brakes: Hydraulic Brakes

Body: Metal+ Fiber Panels

Peak Torque: 12-18 nm (Varies by models)

Transmission: Automated Transmission (AMT)

Cluster: Digital instrument Cluster

Spacious: Design Larger dimensions for superior comfort and higher load capacity

Paint Type CED Coting + PU Paint
